Ultra-fine particle size monitoring

Particle size: 0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 1, 5 μm

Intelligent touch control for easy on-site maintenance

4.3-inch intelligent touch screen, support direct address setting, both local and online operation modes, making replacement and debugging more convenient

Stable, durable and long-service-life design

10-year long-life laser source & 3-year long-life built-in vacuum source with low vibration and low noise, enabling 24/7 continuous operation

Multiple alarms and safety protection

0.1CFM real-time flow monitoring and self-regulation, built-in audible and visual alarm light with >85db, and automatic over-concentration reminder

Multi-protocol communication compatibility and strong expandability

Supports RS485/TCP/WIFI/4G communication, customizable protocols, local data storage, and external connection with various sensors

• High-precision sensor, accurate counting, excellent performance, in line with JJF1190-2008 Specification

• Integrated design, easy installation

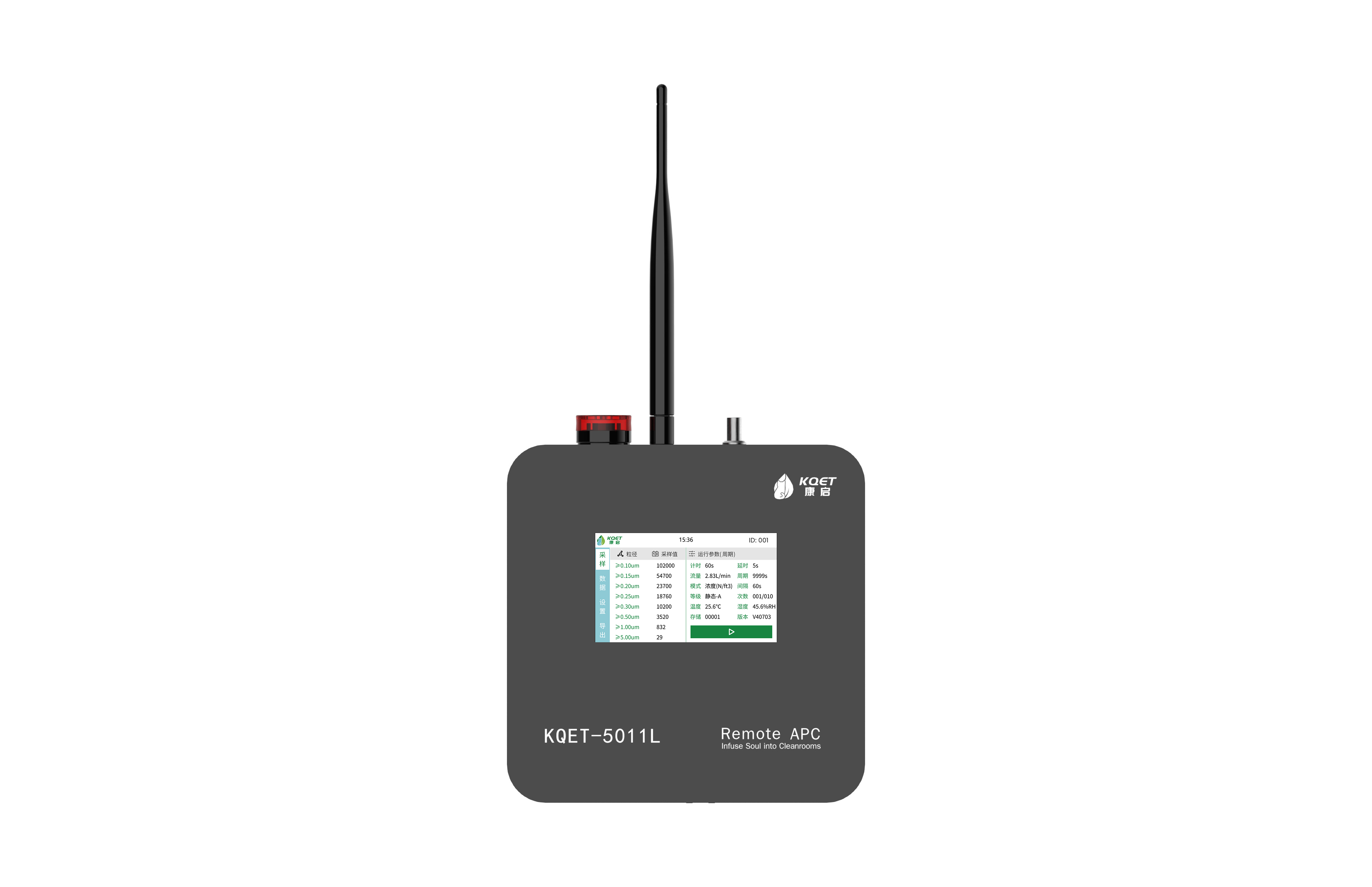

• 4.3-inch intelligent touchscreen, rapid response, human-machine interaction, real-time display of monitoring data.

• Built-in vacuum source with a 3-year long service life, low vibration, low noise, and stable performance to ensure stable counting

• Can be started/stopped locally independently, suitable for both standalone and online use

• Can set its own instrument address directly on the screen for easy on-site replacement

• Calibration due alert to remind customers of metering/calibration

• Screen data alarms and Equipped with a flow sensor for real-time monitoring and automatic adjustment of flow rate, ensuring flow stability and counting accuracy

• Long-life imported semiconductor laser source with a service life of over 20,000 hours (calibration required annually)

• RS485 communication, supports Modbus RTU protocol, and customized communication protocols

• Intelligent IoT capabilities allow for remote start/stop, more accurate cleanliness level management, and enhanced monitoring quality

• USB data export functionality, effective local data storage for over a month to prevent data loss (optional)

• Real-time monitoring of particle quantities with 8 particle sizes: 0.1μm, 0.15μm, 0.2μm, 0.25μm, 0.3μm, 0.5μm, 1.0μm, and 5.0μm

• Built-in audio-visual alarm light, >85db

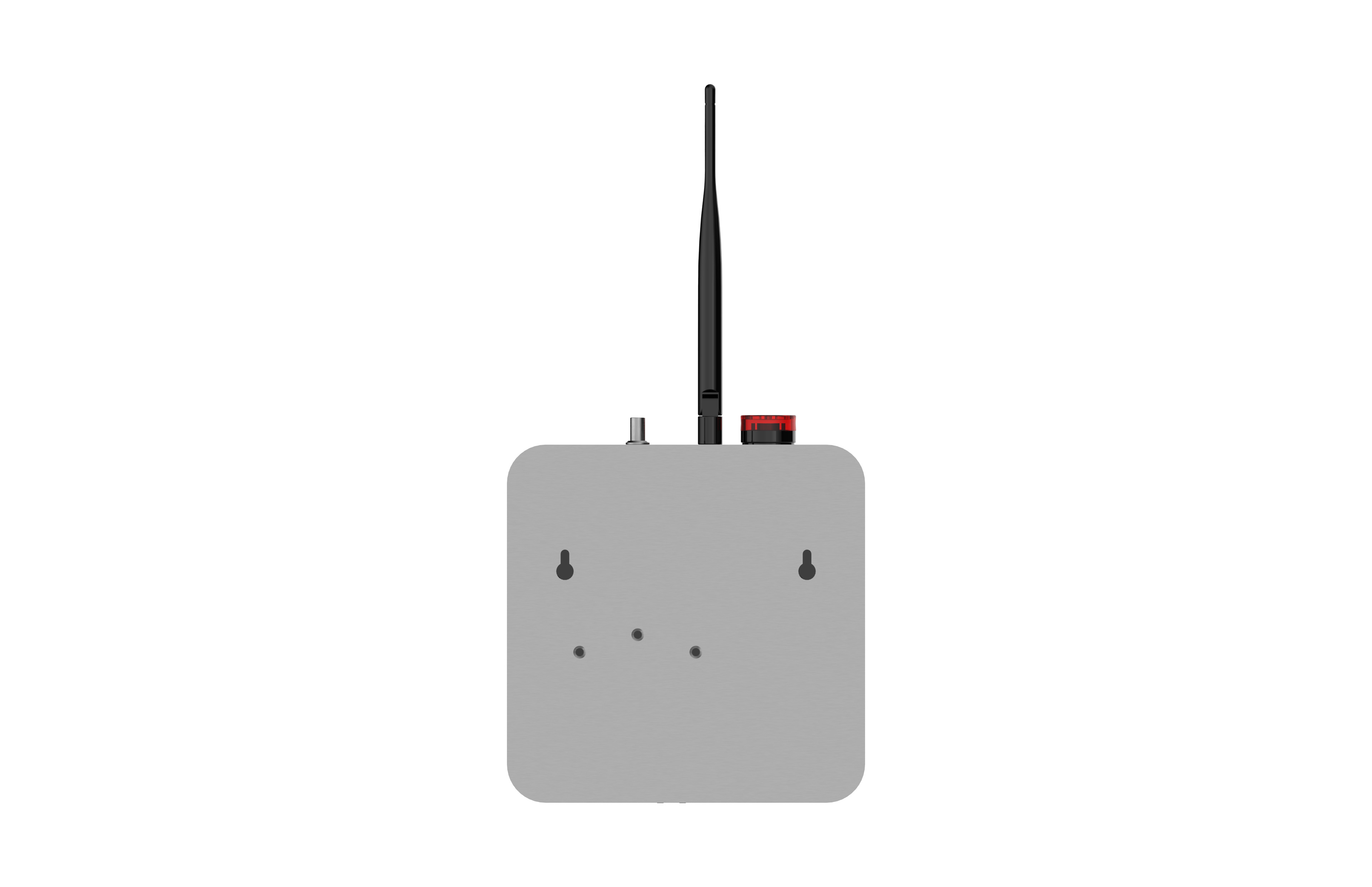

• Counter can be equipped with a wireless antenna, upgraded to wireless transmission mode (optional)

• Expandable analog input hardware interfaces, allowing for external connections to temperature and humidity sensors, airspeed sensors, pressure differential sensors, etc. (optional)

Particle Size Range：0.1μm~5.0μm

Particle Size Channels：0.1μm, 0.15μm, 0.2μm, 0.25μm, 0.3μm, 0.5μm, 1.0μm, 5.0μm

Counting Efficiency for 0.1μm：50±20%

Concentration Indication Error：0.5μm≤±20%FS

Maximum Sampling Concentration：35000 particles/L, Concentration over-limit protection with self-purification reminder

Repeatability Error：±5%FS

Self-Purification Time：≤5min

Sampling Flow Rate：2.83L/min±5%, real-time monitoring, over-limit alarm

Sampling Cycle：1-60000s (configurable)

Sampling Delay：0-60000s (configurable)

Sampling Interval：0-60000s (configurable)

Sampling Times：0-999 times (configurable)

Continuous Operation：Supports 24-hour uninterrupted stable operation

Laser Source：Long service life imported semiconductor laser diode

Vacuum Source：Built-in vacuum source, 3-year service life

Display：4.3-inch touchscreen

Power Supply：DC24V/4A

Communication Mode：RS485 @ Modbus RTU / Ethernet @ Modbus TCP / Wireless Communication @ LoRa

Calibration Specification：JJF1190-2008/ISO 21501-4

Enclosure：304 stainless steel

Dimensions (mm)：Width 185 * Depth 185 * Height 140*Weight：2.55Kg

Operating Environment：Temperature 0~40°C, Humidity 10%~90% (no condensation)

Storage Environment：Temperature -10~50°C, Humidity 0~90% (no condensation)
