1. Product Overview
KQ-4010S is a manual scanning counting leak detector designed according to the requirements of ISO14644-3 B.6 specification. It is specifically designed for leak detection of air outlet filters. The KQ-4010S is easy to use and its basic purpose is to check and measure the concentration of aerosols, achieving online leak detection of filters. The 8-inch color LCD touch screen can monitor real-time concentration changes at the downstream end and observe particle size ranges (0.3,0.5,1.3,5,10um).
Users only need to input the leakage point count value through the three keys of "↑", "↓", and "Scan/Stop" (i.e. OK key) on the handheld display, and during the scanning process, they can obtain information on the leakage point exceeding the standard.

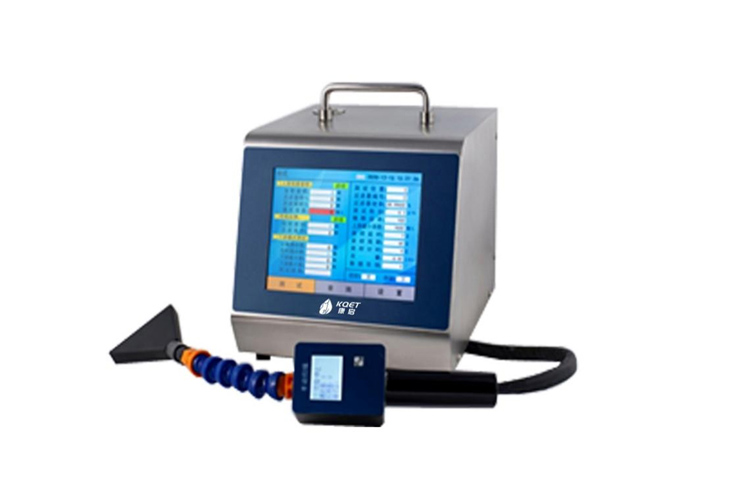

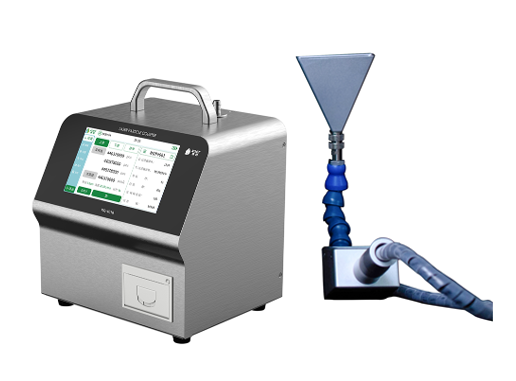

The KQ-4010S consists of four parts, with a 28.3L high flow particle counter as the main body, combined with a handheld scanning sampling probe, aerosol generator, and dilutor.
KQ-4010S meets the requirements of ISO14644-3 B.6, EN1822, IEST-RP-CC001.3, cGMPs, EU GMP.
2. Product features
Acceptable aerosol/Test Aerosol: DEHS standard configuration. (PAO, DOP, PSL, NaCl, KCl can all be used)
Particle counter maximum counting concentration/Max. Concentration: 1.5 × 104P/L
Leakage value, manually input the three keys "↑", "↓", and "OK" on the display.
Sampling Volume: 28.3L/min
Scanning speed/Speed of Scan: recommended at 3-5 cm/s
Suggested spacing between scanning port and filtering surface: 2cm~4cm
Local dimensions: length * width * height: 240 * 330 * 280mm
Weight: 7Kg
Power supply: AC220V 50Hz/DC17V (AC/DC dual-purpose)
3. Configuration list of KQ-4010S high-efficiency filter leak detector:
|
Serial Number
|
Component Name
|
Number
|
|
1
|
High efficiency filter leak detector body
|
1tower
|
|
2
|
Aerosol generator
|
1tower
|
|
3
|
Manual scanning device
|
1piece
|
|
4
|
Dilutor
|
1tower
|
|
5
|
DEHS aerosol
|
500ml 2 bottles
|
4. Specific parameters of relevant equipment:
A aerosol generator

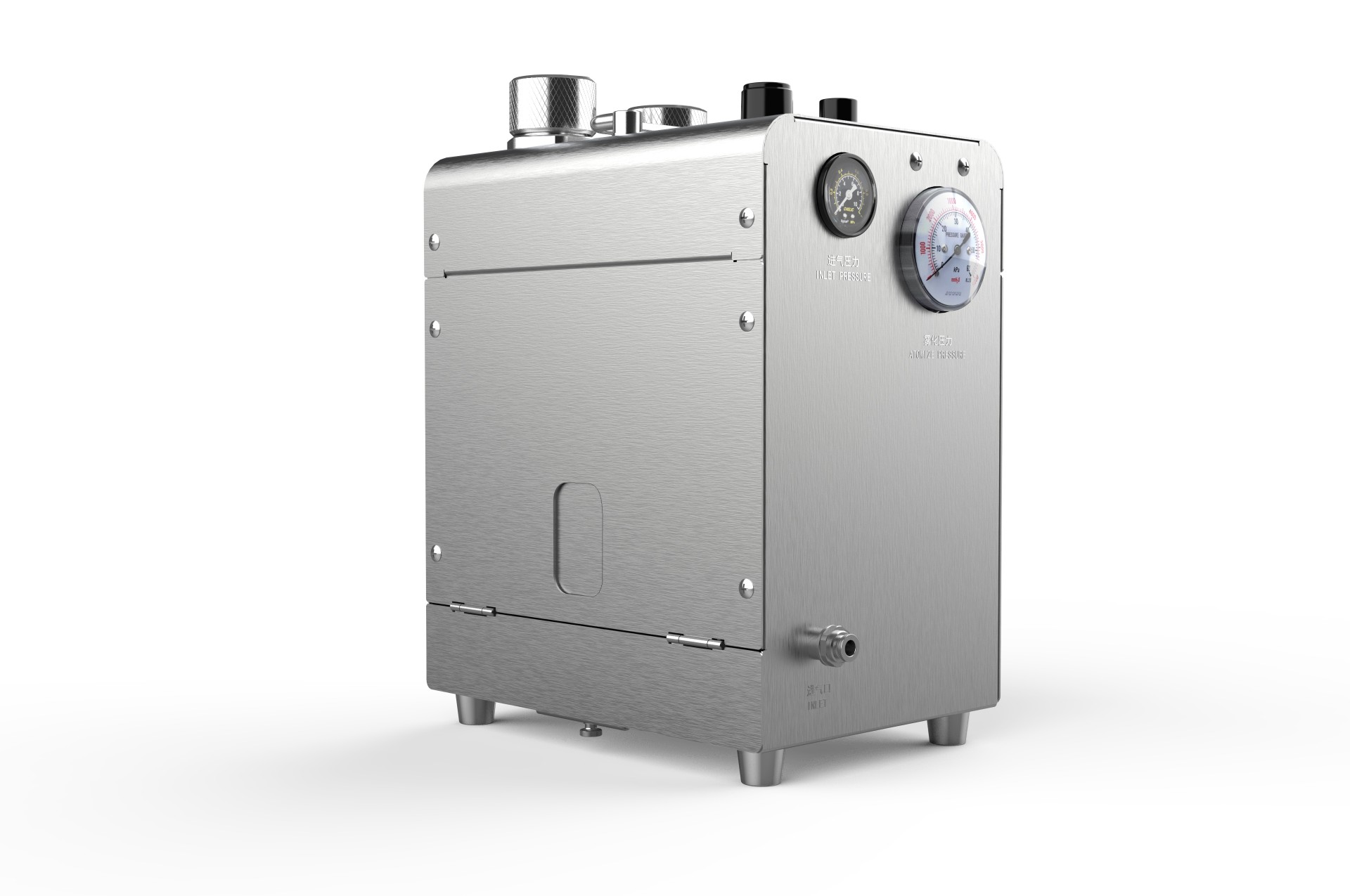

The KQ-Q610 aerosol generator is a portable cold air aerosol generator developed and produced by our company. This type of aerosol generator is suitable for producing multi dispersed aerosols with an air flow rate of ≤ 50000m3/h, and can produce a maximum of 0.5-2 × 1013 P/h. It can meet the requirements of HEPA filter testing for all small clean units to large clean room air supply systems. KQ-Q610 produces a continuous and stable aerosol particle, and it is convenient to add solution.
Note: Customers need to configure their own compressed air pump or air source.
|
Performance indicators:
|
|
|
Model
|
KQ-Q610
|
|
Output range of airborne particles
|
50-8100 cubic feet per minute (1.4-229m) ³/ Min)
|
|
compressed air
|
3 to 18 cubic feet per minute at a flow rate of 20 psi
|
|
Particle size distribution of aerosol
|
0.02-2um
|
|
Aerosol type
|
PAO、DOP、DEHS Cold polydispersity
|
|
sizeH×W×L
|
tall235×wide150×long250 mm
|
|
weight(kg)
|
3.6kg
|
|
material quality
|
SUS304stainless steel
|
B Dilutor

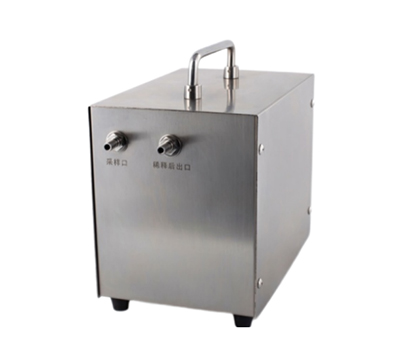

KQ-D110 is a portable dilutor that can form a dilution ratio of 70-370, which can meet the requirements of HEPA filter testing for all small clean units to large clean room air supply systems. This dilutor can form a stable dilution ratio, effectively protecting the leak detector.
|
Performance indicators
|
|
|
Model
|
KQ-D110
|
|
Dilution ratio
|
1：100（Fixed dilution ratio）
|
|
Counting traffic
|
28.3L/min
|
|
Dilution ratio control
|
Flow regulation method
|
5、Installation diagram:
