1. Product Overview

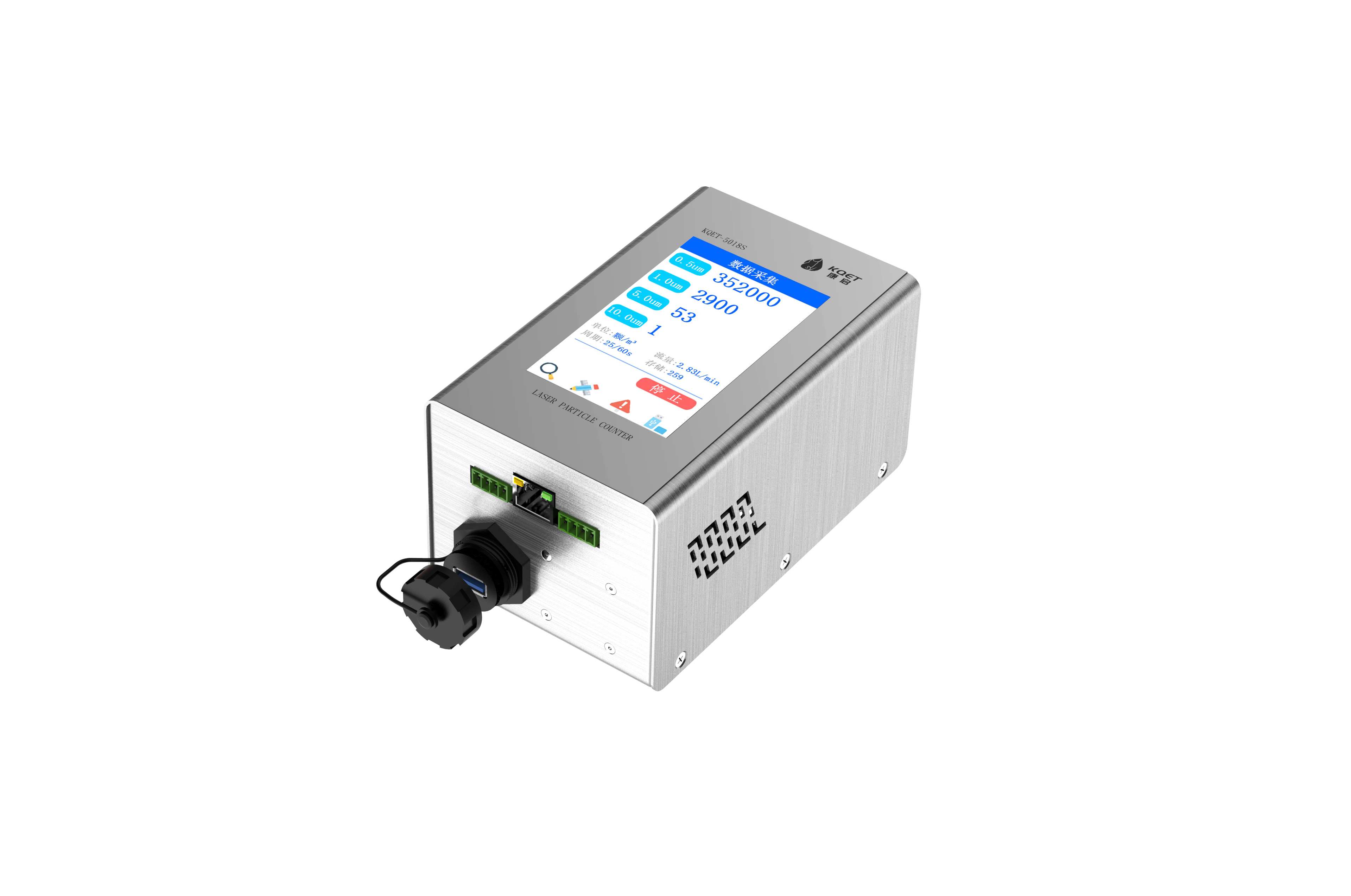

KQET-5018S low flow 2.83L online laser dust particle counter is a testing instrument used in the fields of cleanliness monitoring and particle counting detection in clean environments. The counter is based on the principle of light scattering and uses photoelectric sensing technology to detect the particle size and count the number of dust particles. This instrument has the characteristics of easy visualization for calibration, good stability, high measurement accuracy, small size, light weight, and easy installation. It is widely used in clean scenarios such as pharmaceuticals, electronics, semiconductors, hospital operating rooms, aerospace, precision processing, environmental protection, microbiology, and food industries.
2. Product features
High precision sensor, accurate counting, excellent performance, in compliance with JJF1190-2008 specifications
Compact size and easy installation
4.3 inch intelligent touch screen, fast response, human-machine interaction, real-time display of monitoring data
Internal vacuum source, lifespan>10000 hours, low vibration, low noise, stable performance, ensuring stable counting
More professional industrial design ensures complete functional interfaces without compromising aesthetics
It can be started and stopped locally separately, as a single machine/online dual-use
You can directly set the instrument address on the screen for easy on-site replacement
Verification expiration prompt, reminding customers to measure/calibrate
Screen data alarm, equipped with flow sensors for real-time monitoring of flow and real-time self adjustment of flow to ensure stability of flow and accuracy of counting
Long lifespan imported semiconductor laser source from Japan, with a lifespan greater than 30000 hours (requires annual calibration)
RS485 communication, supports ModbusRTU protocol, supports customized communication protocol
Intelligent IoT, remote start, more accurate management of cleanliness levels, and improvement of cleanliness monitoring quality
Scalable, with analog input hardware interface, can be externally connected to temperature and humidity sensors/wind speed sensors/differential pressure sensors, etc. (optional)
Equipped with USB data export function, the instrument can effectively store local data for more than 1 month, avoiding data interruption (optional)
Real time monitoring of the number of particles with a particle size of 0.5um and 5.0um, which can be expanded to monitor 6 particle size ranges of 0.3um, 0.5um, 1um, 3um, 5um, and 10um
The counter comes with an audible and visual alarm light, ＞ 85dB
Counter can be equipped with wireless antenna and upgraded to wireless transmission mode (optional)
3. Main technical parameters:
|
Particle size range
|
0.3um~10.0um
|
|
Particle size channel
|
0.5um，5.0um
|
|
Particle size distribution error
|
≤±30%
|
|
Concentration indication error
|
0.5μm≤±30%FS
|
|
Maximum sampling concentration
|
35000 pills/liter, concentration limit protection, and prompt for instrument self-cleaning
|
|
Repetitive error
|
±10%F.S
|
|
Cleanliness recovery characteristic
|
≤10min
|
|
Sample flow
|
2.83L ± 5%, real-time monitoring, over limit alarm
|
|
Sampling period
|
1-9999sSettable
|
|
Continuous work
|
Supports 24-hour uninterrupted and stable operation
|
|
Laser light source
|
Long life imported semiconductor laser diodes from Japan
|
|
Vacuum
|
Internal vacuum source, lifespan>10000 hours
|
|
Display
|
4.3-inch touch screen
|
|
Power supply
|
DC24V/1A
|
|
Communication methods
|
RS485 @ ModbusRTU/LoRatelecommunications
|
|
Calibration specifications
|
JJF1190-2008,GB/T6167-2007
|
|
Housing
|
304 stainless steel
|
|
Size
|
Width 9.4 * Depth 17.8 * Height 8.0cm
|
|
Work environment
|
Temperature 0~40 ° C, humidity 10%~90%, no condensation
|
|
Storage environment
|
Temperature -10~50 ° C Humidity -0~90% No condensation
|
4. After sales service:
One year warranty, lifetime maintenance, and free lifetime software upgrades.
