1. Product Overview

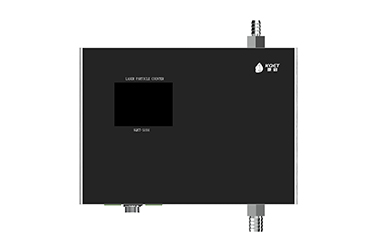

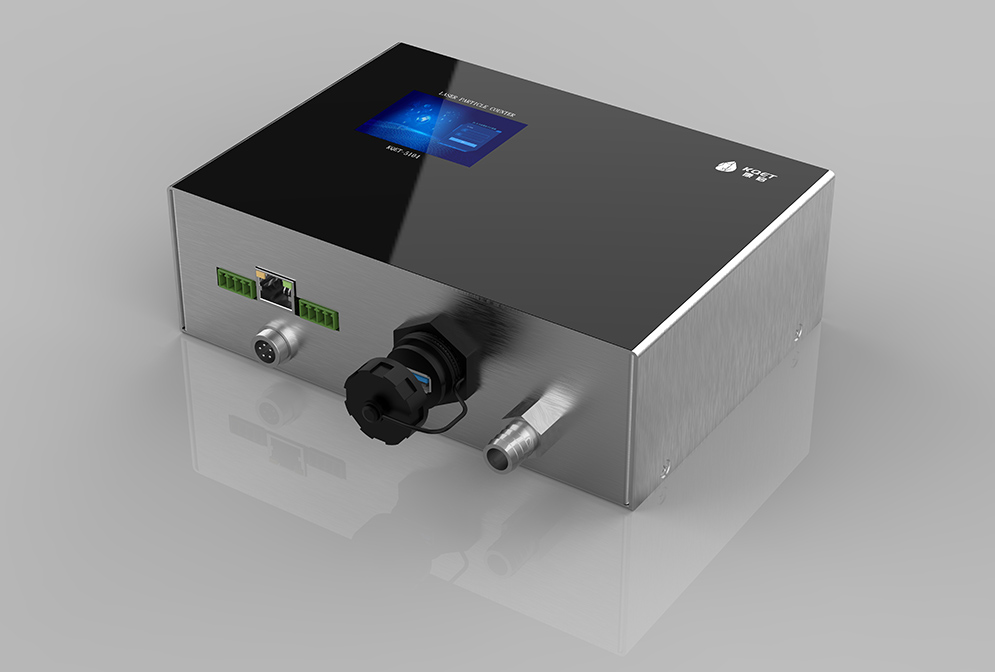

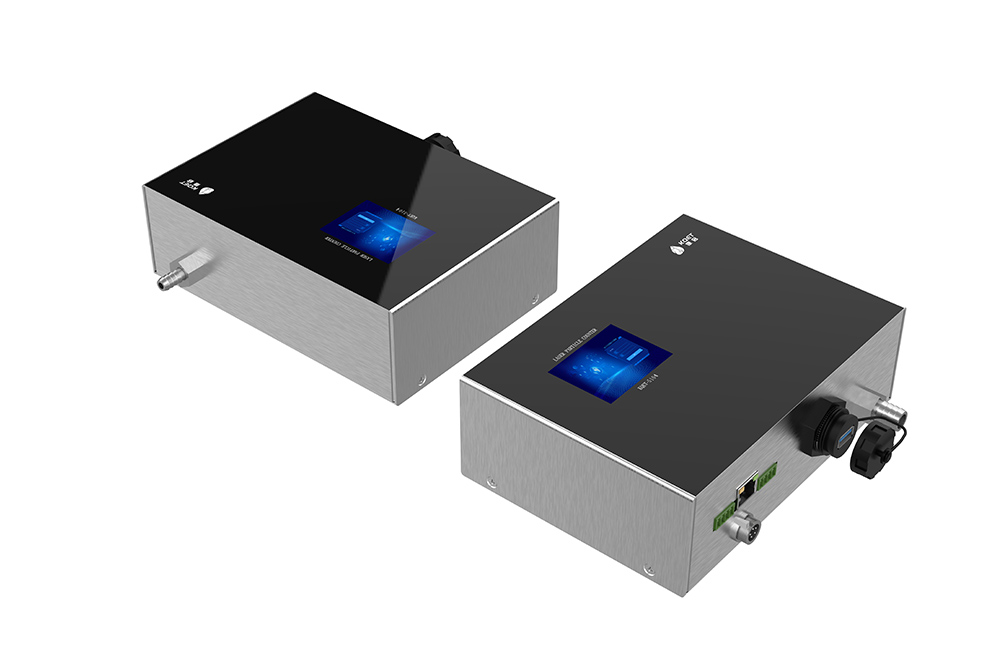

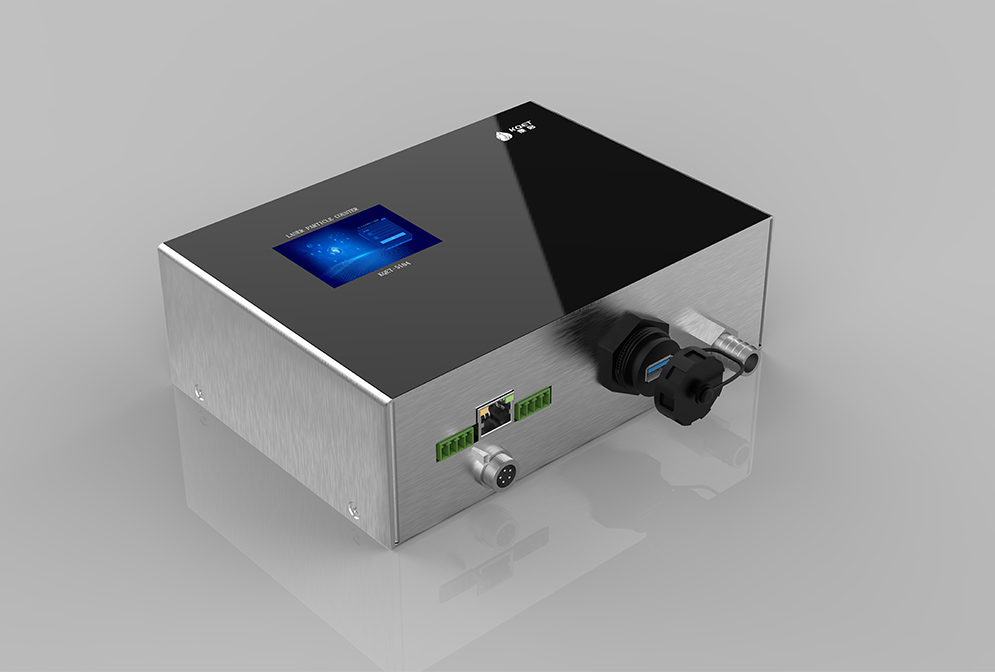

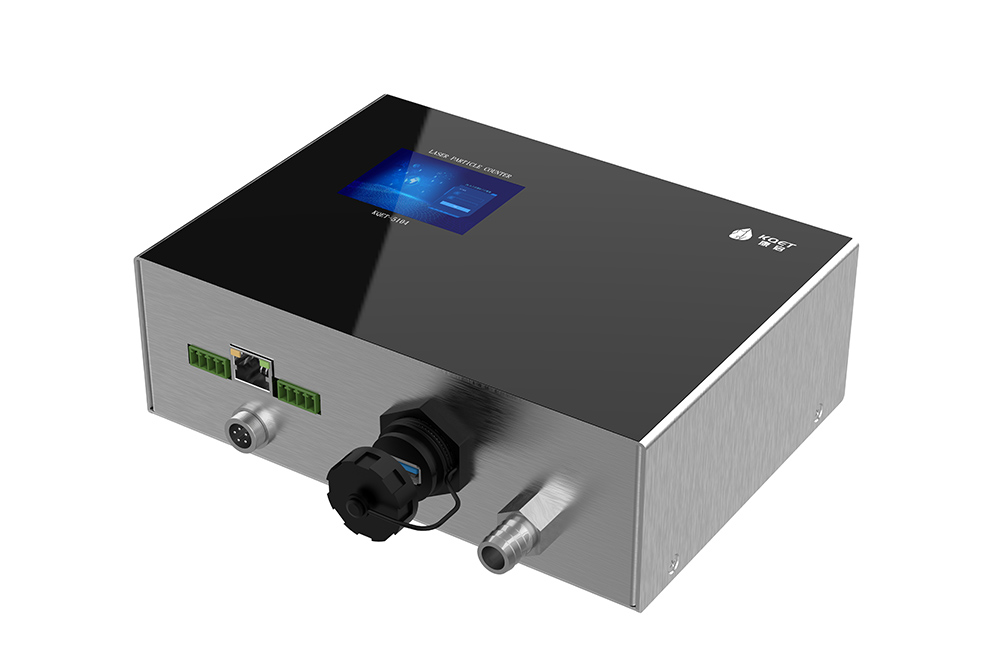

The KQET-5104 high flow 28.3L online laser dust particle counter is a testing instrument used in the fields of cleanliness monitoring and particle counting detection in clean environments. The counter is based on the principle of light scattering and uses photoelectric sensing technology to detect the particle size and count the number of dust particles. Compared to small flow counters, this instrument has a sampling flow rate of 1CFM (28.3L/min), a larger sampling flow rate, and more accurate detection. It has become an essential instrument for pharmaceutical GMP certification. Similarly, this instrument can also be applied to other clean environments such as electronic factories, hospital operating rooms, aerospace, precision processing, and the food industry. This instrument has the characteristics of high measurement accuracy, small size, light weight, and easy installation.
2. Product features
High precision sensor, accurate counting, excellent performance, in compliance with JJF1190-2008 specifications
Compact size and easy installation
2.4-inch intelligent touch screen, fast response, human-machine interaction, real-time display of monitoring data
Can start and stop locally separately
You can directly set the instrument address on the screen for easy on-site replacement
Verification expiration prompt, reminding customers to measure/calibrate
Screen data alarm, with real-time monitoring of flow rate. When connected to an independent pump, the flow rate automatically adjusts in real time to ensure the stability of flow rate and the accuracy of counting
28.3L high flow sampling improves sampling accuracy and efficiency
Imported laser source from Japan, with a lifespan greater than 30000 hours (requires annual calibration)
RS485 communication, supports ModbusRTU protocol, supports customized communication protocol
Intelligent IoT, can start and stop remotely, more accurately manage cleanliness levels, and improve cleanliness monitoring quality
Real time monitoring of the number of particles with a particle size of 0.5um and 5.0um, which can be expanded to monitor 6 particle size ranges of 0.3um, 0.5um, 1um, 3um, 5um, and 10um
Scalable, with analog input hardware interface, can be externally connected to temperature and humidity sensors/wind speed sensors/differential pressure sensors, etc. (optional)
Equipped with USB data export function, the instrument can effectively store local data for more than a month, avoiding data interruption (optional)
3. Main technical parameters:
|
Particle size range
|
0.3um~10.0um
|
|
Particle size channel
|
0.5um，5.0um
|
|
Particle size distribution error
|
≤±30%
|
|
Concentration indication error
|
0.5μm≤±30%FS
|
|
Maximum sampling concentration
|
35000 pieces/liter
|
|
Repetitive error
|
±10%F.S
|
|
Sleanliness recovery characteristic
|
≤10min
|
|
Sample flow
|
28.3L±5%
|
|
Laser light source
|
Long life imported semiconductor laser diode
|
|
Vacuum
|
External vacuum source
|
|
Display
|
2.4-inch touch screen
|
|
Power supply
|
DC24V/1A
|
|
Communication methods
|
RS485 @ ModbusRTU
|
|
Calibration specifications
|
JJF1190-2008,GB/T6167-2007
|
|
Housing
|
304 stainless steel
|
|
Size
|
Width 18.8 * Depth 13.5 * Height 6.2cm
|
|
Work environment
|
Temperature 0~40 ° C, humidity 10%~90%, no condensation
|
|
Storage environment
|
Temperature -10~50 ° C Humidity -0~90% No condensation
|
4. After sales service:
One year warranty, lifetime maintenance, and free lifetime software upgrades.
